Service life: 3 years
Type:Advertisement retro reflective sheeting
Specification: 1.22m x 45.7m, can be cut into small rolls
Available color: white/red; Yellow/red; Yellow/Black; White/Green;
White/Orange; White/Blue
Detailed Retro Reflective Material Description

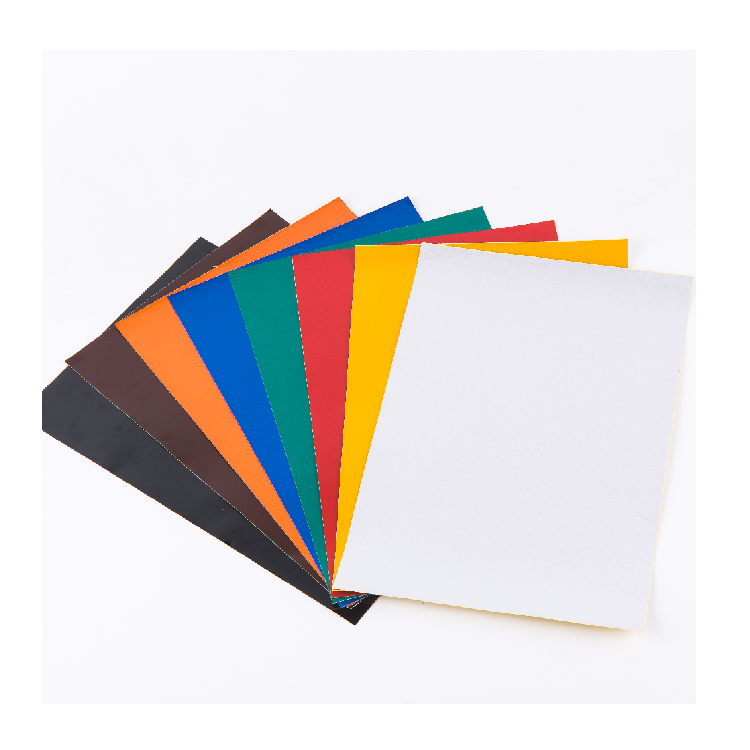

TM3200 Doulble Color retro reflective sheeting Film
We can provide 5cm,10cm and so on. Left and right pattern both available.
TM3200 Double Color retro reflective sheeting Film
Feature: tearable, can be screen printed
Service life: 3 years
Specification: 1.22m x 45.7m, can be cut into small rolls
Available color: white/red; Yellow/red; Yellow/Black; White/Green; White/Orange; White/Blue
Other retro reflective sheeting technical datas:
1. Surface Film: Acrylic Type
2. Type of Adhesive: Pressure-Sensitive Type
3. Strength of Adhesive: at the condition of 0.8kg, 5min, total length: 10cm, the falling Length≤ 2cm
4. Operation temperature: 20 °C
5. Working temperature: -20°C --- 60°C
6. weight per sqm: 345g
7. Color chromaticity:Standard light source : D65 Observation condition: 45/0 Observation angle: 2 degree.
color | Color Chromaticity | Luminence | |||
X Y | X Y | X Y | X Y | Factor | |
White | 0.350 0.360 | 0.300 0.310 | 0.285 0.325 | 0.355 0.375 | ≥0.27 |
Yellow | 0.545 0.454 | 0.464 0.534 | 0.427 0.483 | 0.487 0.423 | 0.16---0.40 |
Red | 0.690 0.310 | 0.658 0.342 | 0.569 0.341 | 0.595 0.315 | 0.03---0.10 |
Green | 0.007 0.703 | 0.026 0.399 | 0.177 0.362 | 0.248 0.409 | 0.03—0.10 |
Blue | 0.078 0.170 | 0.137 0.038 | 0.210 0.160 | 0.150 0.220 | 0.01---0.10 |
